AGROLAND KRYPTON stubble cultivator (no-till) is a machine designed for intensive post-harvest tillage and deep no-till cultivation.

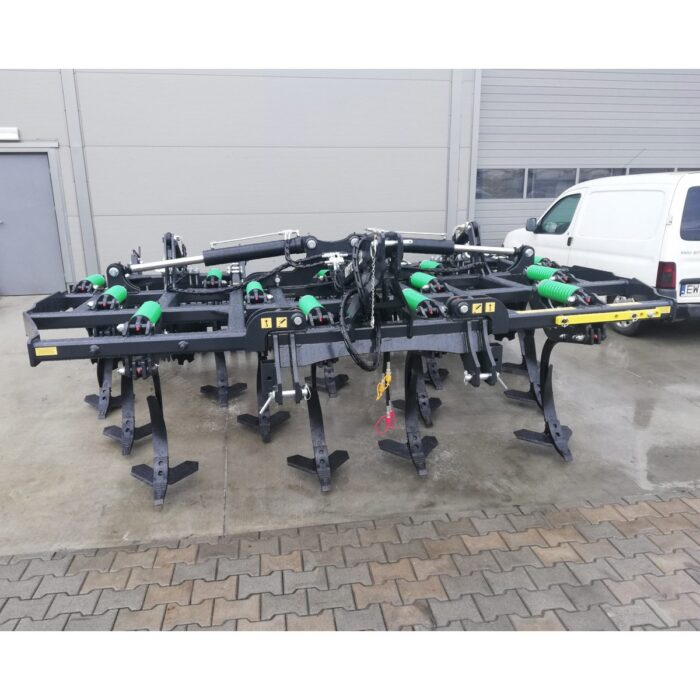

Krypton stubble cultivator – mounted version
Description
AGROLAND KRYPTON stubble cultivator (no-till) is a machine designed for intensive post-harvest tillage and deep no-till cultivation Depending on the work tools used, it is possible to work at a depth of 5 to 30 cm. Two versions of the protection are available: a breakaway screw and a spring protection (KRYPTON PLUS).
The 3-beam system and the use of backward curved tines reduce the likelihood of crop residue clogging. The long, laterally oriented mouldboards mix the soil perfectly, and the row of discs in front of the tillage roller distributes it evenly.
Standard equipment:
• Protection – breakaway bolt
• Tines with coulters 80×15 and side shares
• Maintenance-free harrow disc hubs
• Row of harrowing discs Ø 460mm
• Cat.2/3; cat.3 hitch from the working width of 4.5m
• Stepless adjustment of the working depth of the disc row
Optional equipment:
• NON-STOP spring protection (KRYPTON PLUS)
• LED lighting + warning plates
• Tillage roller
• Reinforced coulters, with carbide
• Hydraulic adjustment of the working depth
• Hydraulically extendable edge discs
• Row of discs Ø 510mm
| Technical parameters | Unit | KRP-25 | KRP-28 | KRP-30 | KRP-35 | KRP-40 | KRP-45 | KRP-50 |
|---|---|---|---|---|---|---|---|---|
| Working width | mm | 2500 | 2800 | 3000 | 3500 | 4000 | 4500 | 5000 |
| Transport width | mm | 2700 | 2800 | 3000 | 3500 | 2750 | 2750 | 2750 |
| Lenght | mm | 3900 | 3900 | 3900 | 4200 | 4200 | 4200 | 4200 |
| Weight with bolt protection | kg | 1050 | 1100 | 1200 | 1350 | 2050 | 2300 | 2500 |
| Weight with spring protection | pcs. | 1400 | 1500 | 1650 | 1900 | 2600 | 2900 | 3100 |
| Max working depth | mm | 50-300 | 50-300 | 50-300 | 50-300 | 50-300 | 50-300 | 50-300 |
| Number of tines | szt. | 8 | 9 | 10 | 12 | 13 | 15 | 17 |
| Span of tines | mm | 300 | 300 | 290 | 280 | 300 | 300 | 300 |
| Number of rows of tines | pcs. | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Span of rows | mm | 720 | 720 | 720 | 720 | 720 | 720 | 720 |
| Frame clearance | mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Disc diameter | mm | 460 | 460 | 460 | 460 | 460 | 460 | 460 |
| Power demand | HP | 90-140 | 100-160 | 140-180 | 150-200 | 180-240 | 220-280 | 280-300 |
Additional information
| Working width [mm] | 2500, 2800, 3500, 4500, 5000, 3000, 4000 |
|---|---|
| Transport width [mm] | 2700, 2750, 2800, 3500, 3000 |
| Length [mm] | 3900, 4200 |
| Weight with breakable protection [kg] | 1050, 1100, 1200, 1350, 2050, 2300, 2500 |
| Weight with spring protection [kg] | 1400, 1500, 1650, 1900, 2600, 2900, 3100 |
| Working depth [mm] | 50-300 |
| Number of points [pcs] | 10, 12, 13, 15, 17, 8, 9 |
| Distance between points [mm] | 280, 290, 300 |
| Ilość rzędów redlic [szt.] | 3 |
| Distance between rows [mm] | 720 |
| Frame clearance [mm] | 800 |
| Disc diameter [mm] | 460, 510 |
| Power requirement [HP] | 100-160, 140-180, 150-200, 180-240, 220-280, 280-300, 90-140 |
